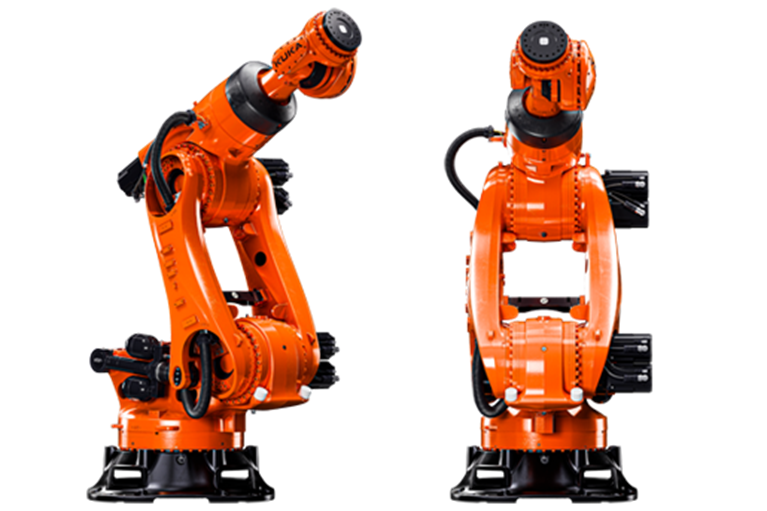

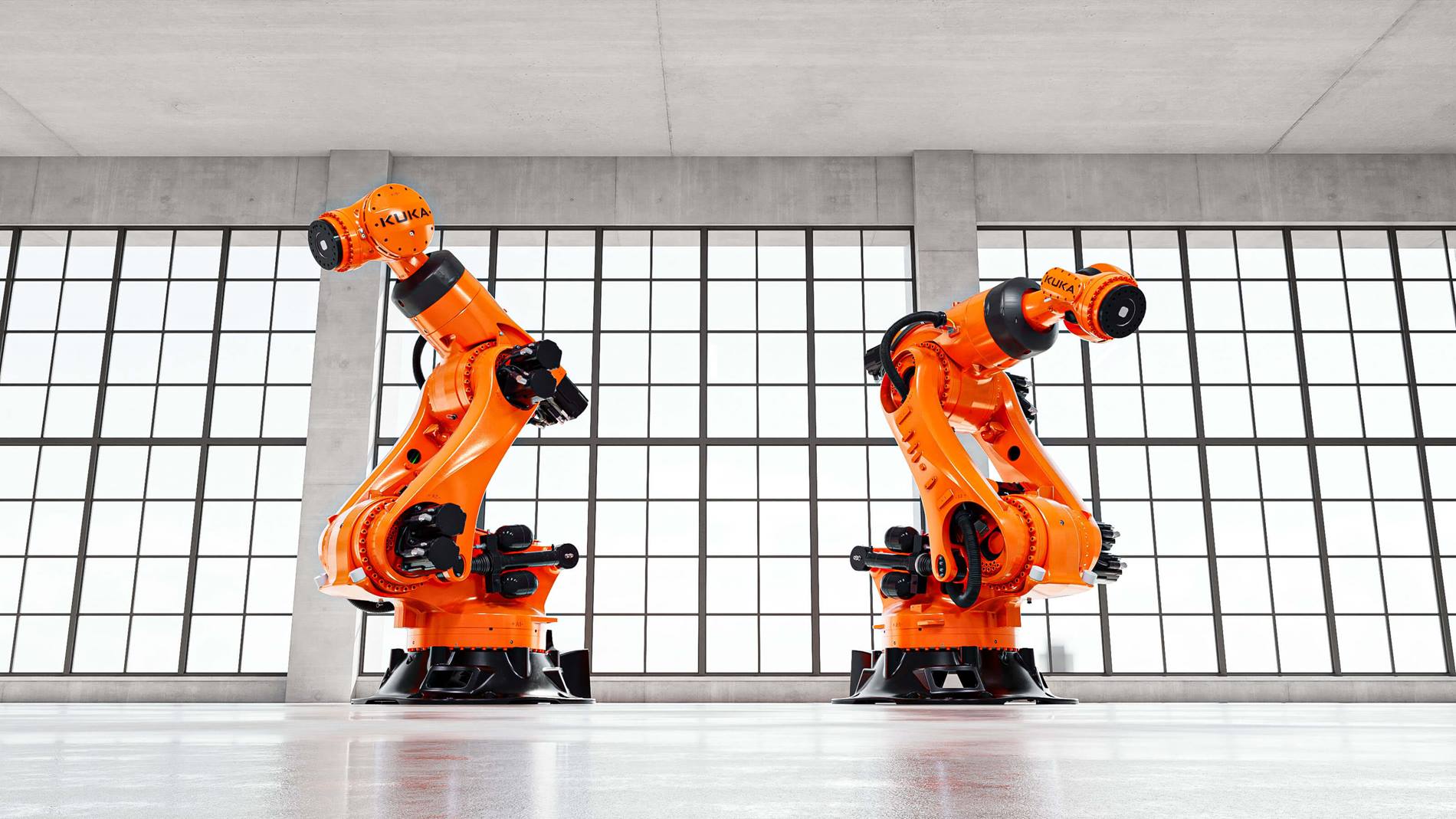

KR TITAN ultra

The specialist for handling heavy payloads: the industrial robot moves payloads of up to 1500 kg and achieves long reaches with its low dead weight.

The most powerful robot in the KUKA portfolio

Heavy payloads are no problem for it: The new KR TITAN ultra moves payloads of up to 1500 kg, making the heavy lifting extreme in the KUKA portfolio. It also offers a reach of up to 4200 mm. In the automotive sector, in battery production, in the photovoltaic sector and in handling heavy parts in general, the KR TITAN ultra always meets high requirements.

High Performance
Modular construction
Reduction of TCO
- Efficient operation due to low energy requirements of the robot
- High mean time between failures (MTBF)
- Fast restoration of operational readiness (MTTR)
Low maintenance
- Low maintenance effort due to durable components
- Easy access to all relevant maintenance points on the robot
- Only a few recurring maintenance tasks

1500 - 1500 Load capacity [kg]

3226 - 3226 Reach [mm] (arm length)

This robot makes great things possible: it lifts heavy loads and achieves a long reach.

High load capacity, small footprint

The KR TITAN ultra moves very high payloads with a small footprint. The heavy-duty robot lifts parts weighing up to 1500 kg with a dead weight of just 4.5 t.

High Inertia meets High Payload

Even large and very heavy parts with high moments of inertia are always under control thanks to the heavy-duty robot's rigid design with double swing arms.

More reach

The KR TITAN ultra has a reach of up to 4200 mm in the version with a payload of 1000 kg. The robot is also available with a reach of 3700 mm (1250 kg payload) and 3200 mm (1500 kg).

Foundry variant for versatile use

The foundry version enables the robot to be used under extreme production conditions and withstands environmental influences such as dust, heat and moisture.
