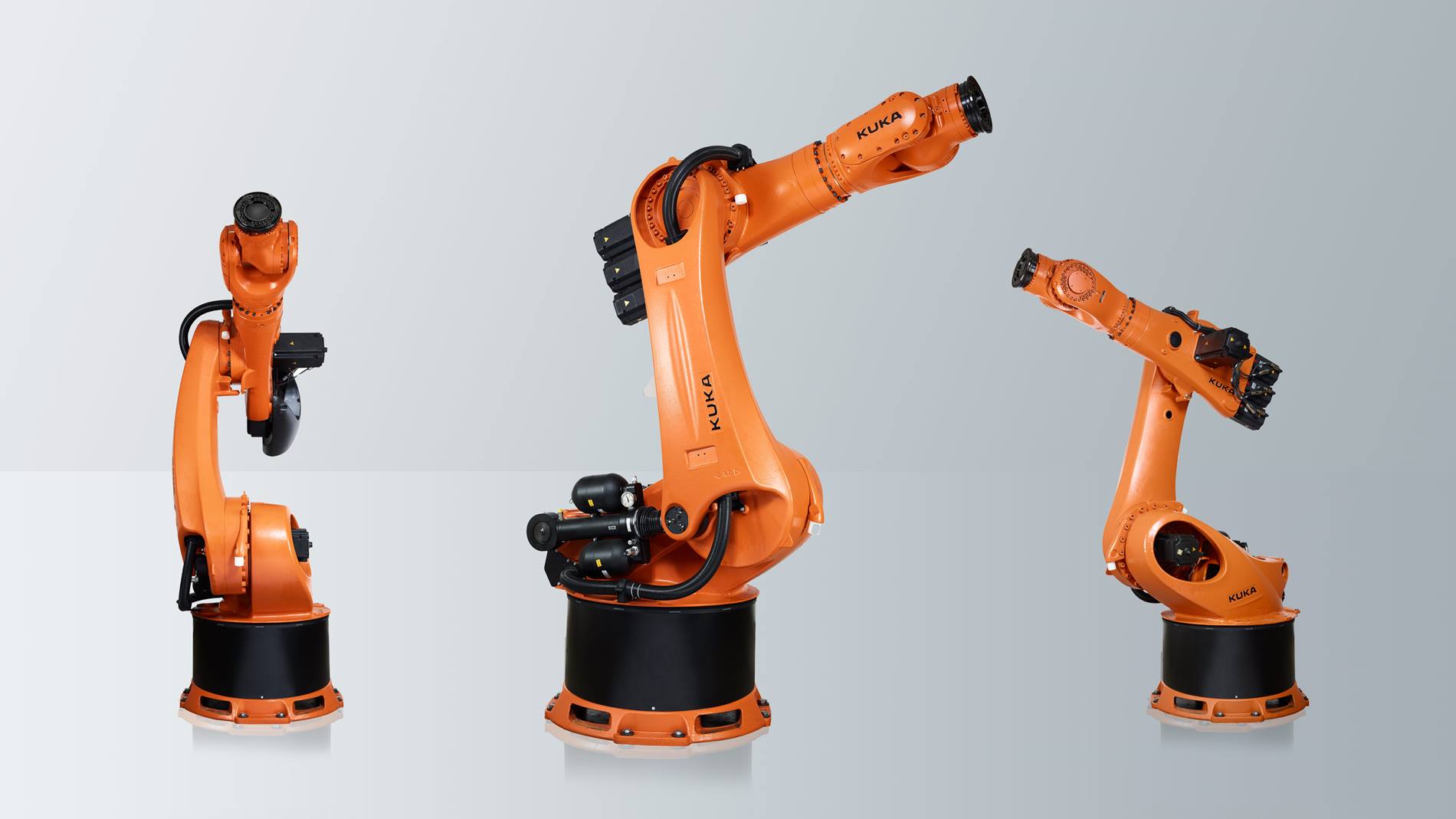

KR 500 FORTEC

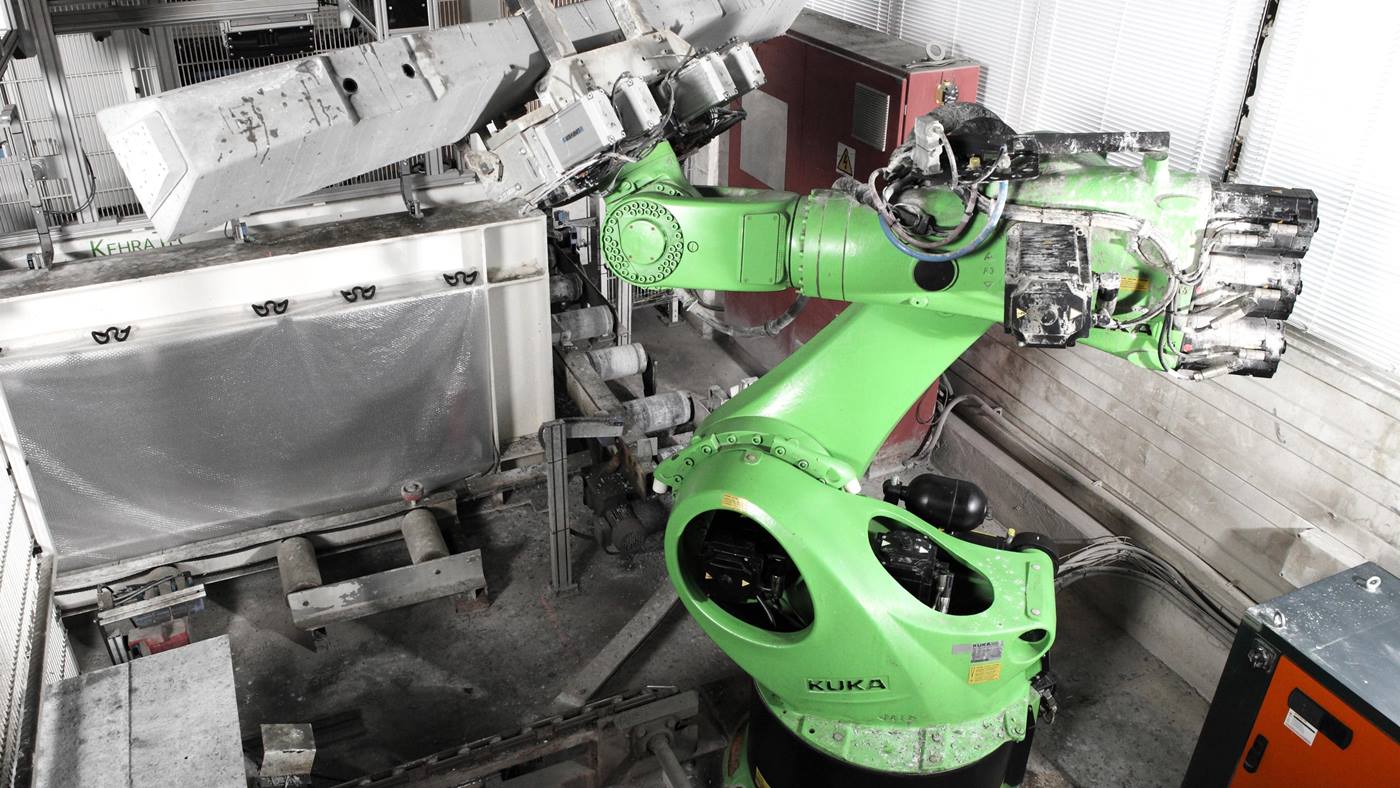

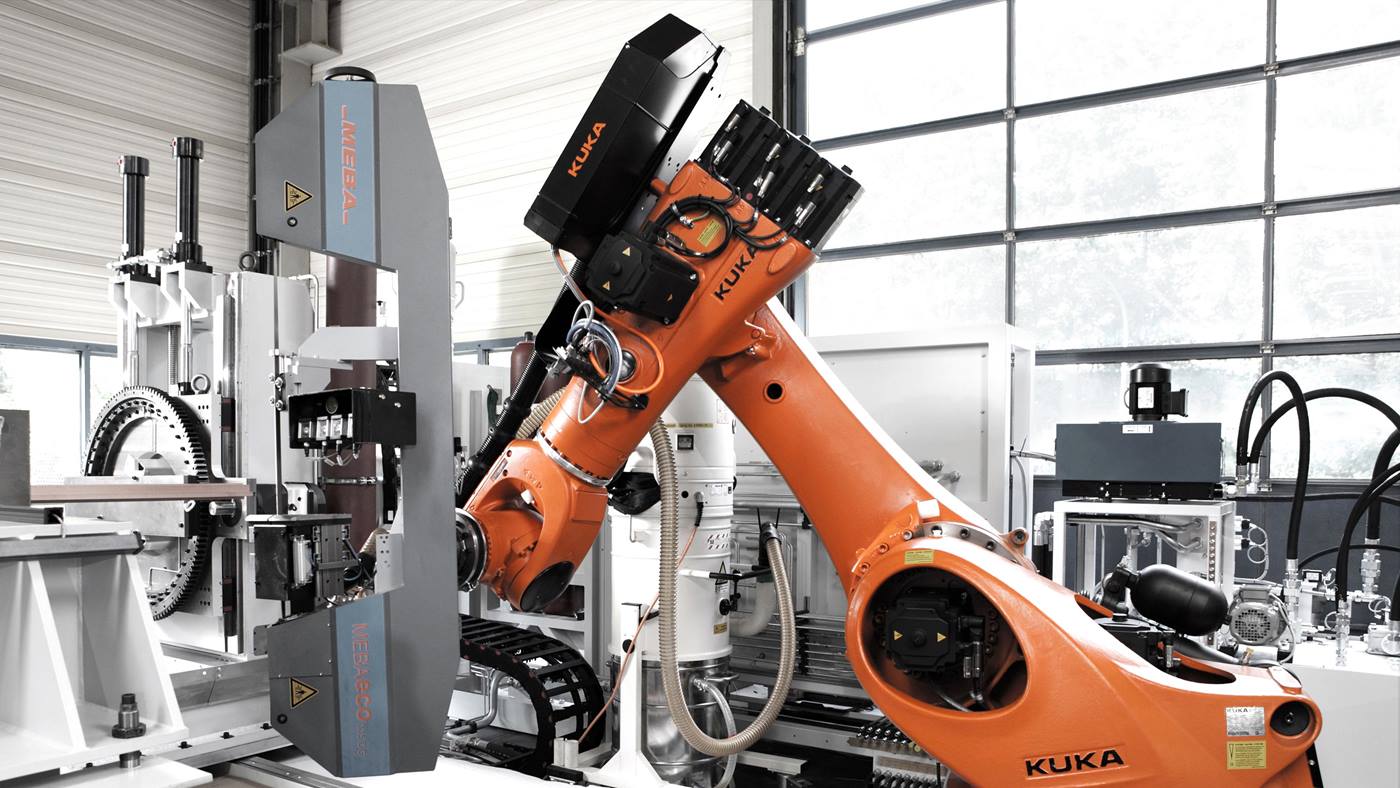

The KR 500 FORTEC is our versatile heavy-duty robot that is suitable for a wide range of applications. For example, the Machine Tool variant is predestined for milling applications in the high payload range, while the Foundry variant is perfectly suited to heavy-duty tasks in the foundry.
340 - 600 Load capacity [kg]
2826 - 3326 Reach [mm] (arm length)
KR 500 FORTEC (6 axes) - technical data
Robots
Total load
Maximum reach
Version environment
Downloads
KR 340 R3330
Total load
340 kg
Maximum reach
3326 mm
Version environment
Standard
Downloads
- Total load 340 kg
- Maximum reach 3326 mm
- Construction type Standard
- Version environment Standard
- Mounting positions Floor
- Protection class IP 65
- Downloads Download Center
- Controller
KR 340 R3330 F
Total load
340 kg
Maximum reach
3326 mm
Version environment
Foundry
Downloads
- Total load 340 kg
- Maximum reach 3326 mm
- Construction type Standard
- Version environment Foundry
- Mounting positions Floor
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
KR 420 R3080
Total load
420 kg
Maximum reach
3076 mm
Version environment
Standard
Downloads
- Total load 420 kg
- Maximum reach 3076 mm
- Construction type Standard
- Version environment Standard
- Mounting positions Floor
- Protection class IP 65
- Downloads Download Center
- Controller
KR 420 R3080 F
Total load
420 kg
Maximum reach
3076 mm
Version environment
Foundry
Downloads
- Total load 420 kg
- Maximum reach 3076 mm
- Construction type Standard
- Version environment Foundry
- Mounting positions Floor
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
KR 420 R3330 F
Total load
420 kg
Maximum reach
3326 mm
Version environment
Foundry
Downloads
- Total load 420 kg
- Maximum reach 3326 mm
- Construction type Standard
- Version environment Foundry
- Mounting positions Floor
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
KR 480 R3330 MT
Total load
480 kg
Maximum reach
3326 mm
Version environment
Standard
Downloads
- Total load 480 kg
- Maximum reach 3326 mm
- Construction type Machine Tooling
- Version environment Standard
- Mounting positions Floor
- Protection class IP 65
- Downloads Download Center
- Controller
KR 480 R3330 MT-F
Total load
480 kg
Maximum reach
3326 mm
Version environment
Foundry
Downloads
- Total load 480 kg
- Maximum reach 3326 mm
- Construction type Machine Tooling
- Version environment Foundry
- Mounting positions Floor
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
KR 500 R2830
Total load
500 kg
Maximum reach
2826 mm
Version environment
Standard
Downloads
- Total load 500 kg
- Maximum reach 2826 mm
- Construction type Standard
- Version environment Standard
- Mounting positions Floor
- Protection class IP 65
- Downloads Download Center
- Controller
KR 500 R2830 F
Total load
500 kg
Maximum reach
2826 mm
Version environment
Foundry
Downloads
- Total load 500 kg
- Maximum reach 2826 mm
- Construction type Standard
- Version environment Foundry
- Mounting positions Floor
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
KR 500 R2830 MT
Total load
500 kg
Maximum reach
2826 mm
Version environment
Standard
Downloads
- Total load 500 kg
- Maximum reach 2826 mm
- Construction type Machine Tooling
- Version environment Standard
- Mounting positions Floor
- Protection class IP 65
- Downloads Download Center
- Controller
KR 510 R3080 F
Total load
510 kg
Maximum reach
3076 mm
Version environment
Foundry
Downloads
- Total load 510 kg
- Maximum reach 3076 mm
- Construction type Standard
- Version environment Foundry
- Mounting positions Floor
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
KR 600 R2830 F
Total load
600 kg
Maximum reach
2826 mm
Version environment
Foundry
Downloads
- Total load 600 kg
- Maximum reach 2826 mm
- Construction type Standard
- Version environment Foundry
- Mounting positions Floor
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
