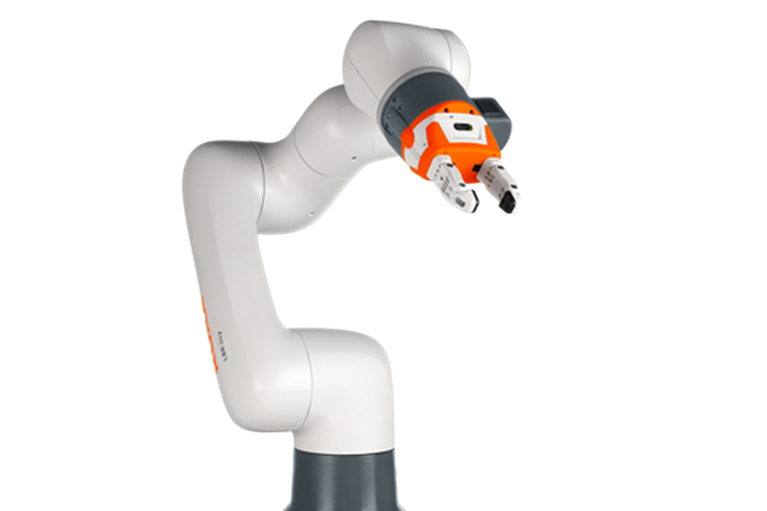

LBR iisy Cobot

Highly versatile, intuitive to operate and reliable in contact with humans – the LBR iisy is a cobot for all production areas. It combines the know-how of industrial automation with the flexibility and simplicity of an intelligent tool, paired with the speed of a traditional industrial robot.

Set it up, switch it on, get started._It’s iisy

Ready for use in just a few minutes –  the LBR iisy cobot stands out due to its intuitive operating features, which ensure that it can be put to use quickly and productively without any prior knowledge.

The robot uses the iiQKA.OS2 operating system, making it easy to install, configure and program. Tasks can be taught really easily by means of manual guidance. Thanks to the smart teach pendant smartPAD pro, any additional programming tasks are as easy as using a smartphone.

An optional pre-installed and pre-configured gripper makes the cobot even easier to use.

Want to automate tasks quickly? No problem at all with the LBR iisy industrial robot

Great reasons to opt for the LBR iisy

The LBR iisy industrial robot is ideally suited to a wide range of tasks in fields of application and in industries where precision, speed and dexterity are particularly important. It is used to load and unload machines, for pick-and-place and handling tasks, but also for packaging and testing.

The collaborative robot is impressive not only with its low weight, its incomparably high speed, the compact design and the integrated sensors, but above all because of its straightforward commissioning, which makes the LBR iisy a flexible assistant in the production environment.

  • Easy

    • Ready to use in minutes
    • Teaching by hand
    • Intuitive user interface
    • Control via smartPAD pro
    • No programming knowledge
    • Option: pre-configured gripper

  • Collaborative & safe

    • Detects collisions
    • Measures process forces by means of joint torque sensors
    • HRC-capable
    • Simple maintenance using intervention areas

  • Flexibly expandable

    • Internal cable routing for power supply
    • Accessories can be installed easily using toolboxes
    • Swift change of tasks
    • Connection to iiQKA ecosystem

  • Value-adding

    • Low investment costs
    • High availability
    • Large working radius, small footprint
    • Industry-proven
    • Combining the best of robots and cobots

Request a quote or get more technical details for LBR iisy cobot

Request Quote

Custom-made or mass production._It’s iisy

Thanks to the iiQKA.OS2 operating system and its industry-proven technology, the LBR iisy collaborative robot can be quickly integrated into existing production landscapes. At the same time, the cobot fits seamlessly into rapidly changing manufacturing environments that produce customized goods – even with a batch size of 1.

3 - 15 Load capacity [kg]

760 - 1300 Reach [mm] (arm length)

The LBR iisy cobot can be deployed with ease in almost all production areas.

Immediately ready for productive use

Ready for production in just minutes, the LBR iisy offers intuitive operation and integrated hand‑guiding for effortless commissioning and easy programming.

Attractive design

Slim, lightweight and easy to handle, the LBR iisy features a smooth, clear design with no sharp edges, making hand‑guiding comfortable even in tight spaces.

Simple tool change

Tool changes can be carried out on the LBR iisy in no time at all. All customary tools are docked onto the ISO flange, and the cable routing for the power supply is already integrated.

Increased speed

Thanks to its extremely high joint speed, the LBR iisy is as fast as a traditional industrial robot, enabling higher torques and speeds than conventional cobots.

Proven industrial suitability

The LBR iisy features an industrial‑grade, field‑proven drive train and supports key industry standards such as fieldbus protocols, digital I/Os and safety—ensuring easy integration into existing systems.

Cost-effective automation

Its cost‑effective design and fast integration make the LBR iisy an attractive choice for small and medium‑sized companies.

Low weight

Easy handling and low weight make the LBR iisy quick and rewarding to deploy - and easy to reposition when needed.

Cleanroom version

Suitable for microelectronics and semiconductors – Cleanroom Class 3 (DIN EN ISO 14644-1).

LBR iisy Cobot (6 axes) - technical data

Robots
Total load
Maximum reach
Version environment
Downloads
LBR iisy 3 R760
Total load
3 kg
Maximum reach
760 mm
Version environment
Standard
Downloads
Download Center
  • Total load 3 kg
  • Maximum reach 760 mm
  • Construction type Standard
  • Version environment Standard
  • Mounting positions Angle, Ceiling, Floor, Wall
LBR iisy 6 R1300
Total load
6 kg
Maximum reach
1300 mm
Version environment
Standard
Downloads
Download Center
  • Total load 6 kg
  • Maximum reach 1300 mm
  • Construction type Standard
  • Version environment Standard
  • Mounting positions Angle, Ceiling, Floor, Wall
LBR iisy 8 R930
Total load
8 kg
Maximum reach
930 mm
Version environment
Standard
Downloads
Download Center
  • Total load 8 kg
  • Maximum reach 930 mm
  • Construction type Standard
  • Version environment Standard
  • Mounting positions Angle, Ceiling, Floor, Wall
LBR iisy 11 R1300
Total load
11 kg
Maximum reach
1300 mm
Version environment
Standard
Downloads
Download Center
  • Total load 11 kg
  • Maximum reach 1300 mm
  • Construction type Standard
  • Version environment Standard
  • Mounting positions Angle, Ceiling, Floor, Wall
LBR iisy 11 R1300 CR
Total load
11 kg
Maximum reach
1300 mm
Version environment
Cleanroom
Downloads
Download Center
  • Total load 11 kg
  • Maximum reach 1300 mm
  • Construction type Standard
  • Version environment Cleanroom
  • Mounting positions Angle, Ceiling, Floor, Wall
LBR iisy 15 R930
Total load
15 kg
Maximum reach
930 mm
Version environment
Standard
Downloads
Download Center
  • Total load 15 kg
  • Maximum reach 930 mm
  • Construction type Standard
  • Version environment Standard
  • Mounting positions Angle, Ceiling, Floor, Wall
LBR iisy 15 R930 CR
Total load
15 kg
Maximum reach
930 mm
Version environment
Cleanroom
Downloads
Download Center
  • Total load 15 kg
  • Maximum reach 930 mm
  • Construction type Standard
  • Version environment Cleanroom
  • Mounting positions Angle, Ceiling, Floor, Wall
%x of %y robots visible

Smart robotics fully matching your expectations._It’s iisy

Sensitive and fast

The LBR iisy collaborative robot is equipped with sensitive joint torque sensors on all six axes. These enable force-based applications without additional force/torque sensors, allowing it to operate as responsively as a human hand and control forces independently. In addition, the robot arm reacts immediately to the slightest contact, providing safe and certified collision protection for the human operator.

If the robot works alone, without employees in the direct vicinity, even higher production speeds are possible that correspond to those of a traditional industrial robot.

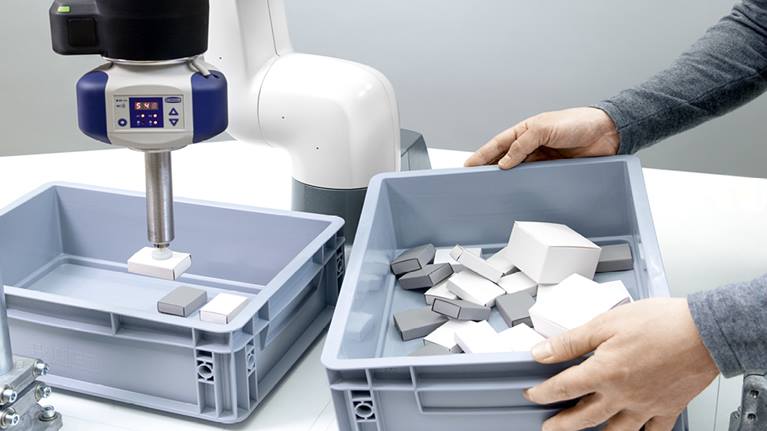

The collaborative robot does not exceed the specified force required for the task.
The collaborative robot does not exceed the specified force required for the task.

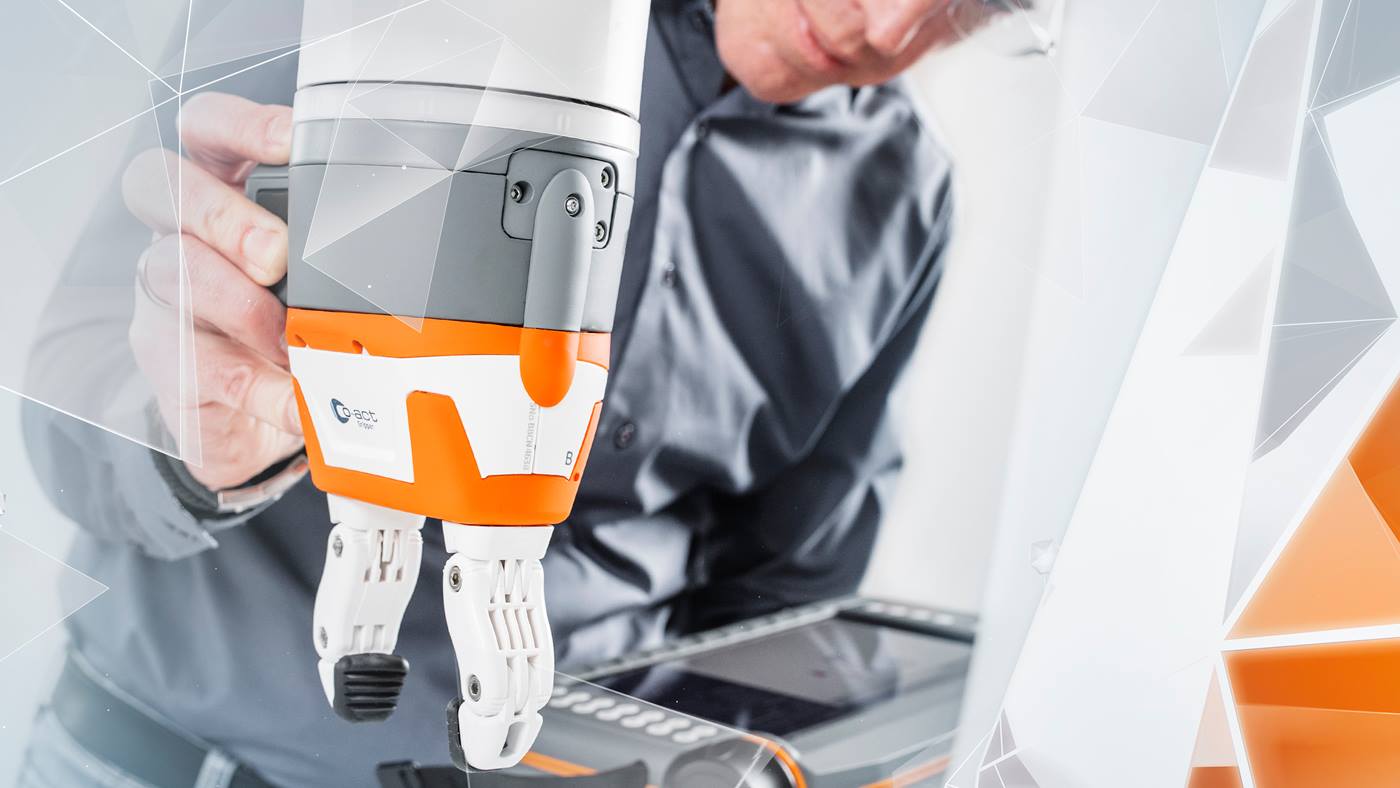

Teaching by manual guidance

Whether you are an automation novice or a robotics expert, the combination of the cobot and the user-friendly iiQKA.OS2 operating system offers maximum flexibility and gives users the choice:

  • Teaching programmed points by means of simple manual guidance on the robot itself
  • Programming by means of the smart user interface of the smartPAD pro
  • More complex applications are possible thanks to the program tree concept, which is based on KUKA’s decades of experience in simplifying industrial robot programming

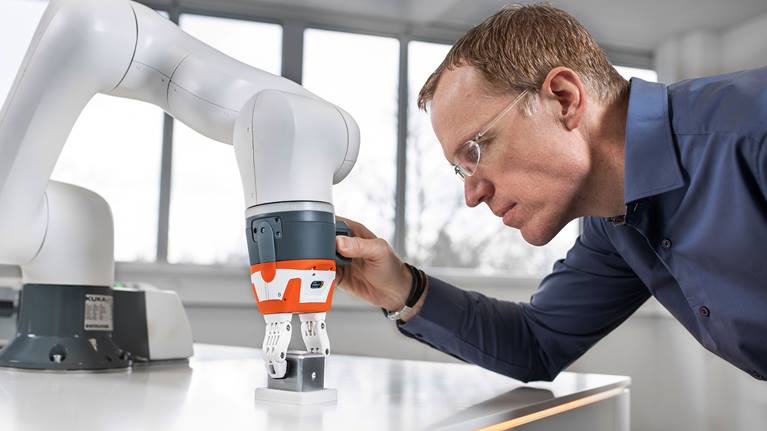

Guide the collaborative robot through all the work steps by hand, display all the steps in a graphical program tree, and then run the program. _It’s iisy
Guide the collaborative robot through all the work steps by hand, display all the steps in a graphical program tree, and then run the program. _It’s iisy

Easy to retrofit – from gripper to 3D recognition

Intelligent, modular and therefore flexible in its application: The LBR iisy robot brings human and machine together in a unique way. It can be expanded at any time with applications and accessories from KUKA and its partners from the KUKA Ecosystem and optimized for new tasks.

The optional features of the LBR iisy open up new possibilities for companies in terms of process automation:

  • Various grippers
  • Vision systems with 3D image recognition
  • iiQWorks.Sim simulation software
  • External energy supply system
  • 24V power supply
Products are developed in the iiQKA ecosystem that can be retrofitted on the LBR iisy.

Easy to control

With the compact KR C5 micro controller, integrating the robot into production operations is particularly easy and seamless. The intuitive operability is further enhanced by the powerful smartPAD pro. Its graphical user interface enables fast parametrization of work sequences without the need for specific programming knowledge.


The KR C5 micro robot controller requires only a small amount of space – and very little energy.

Safe human-robot collaboration

Special requirements apply to robotics whenever humans and machines work together.

The LBR iisy collaborative robot is equipped with highly sophisticated sensor technology for human-robot collaboration. Individual intervention zones can be determined by means of a risk analysis.
This creates collaborative workspaces that can also be used with ease to reprogram and maintain the cobot in a straightforward manner, for example.


Thanks to its safety features, the LBR iisy robot can work together with human operators in a workspace.

KUKA Cobot Portfolio

Our collaborative robots for diverse tasks: from autonomous mobile cobots for logistics to cobots for medicine.

3D simulation – get to know the LBR iisy cobot

Choose between two different applications and get a 3D preview of the LBR iisy, with or without a safety fence depending on your needs. You can view the selected application easily from all sides, zooming in and out to get a close look at all the details of the collaborative robot.

Choose an application
Pick & Place
Handling Machine Tools
Choose safety measures
Laser Scanner
Protective fence

Suitable for these applications

Cobot in operation at small and medium-sized enterprises
